brass bayonet cap bulb lamp holder with cord grip B22

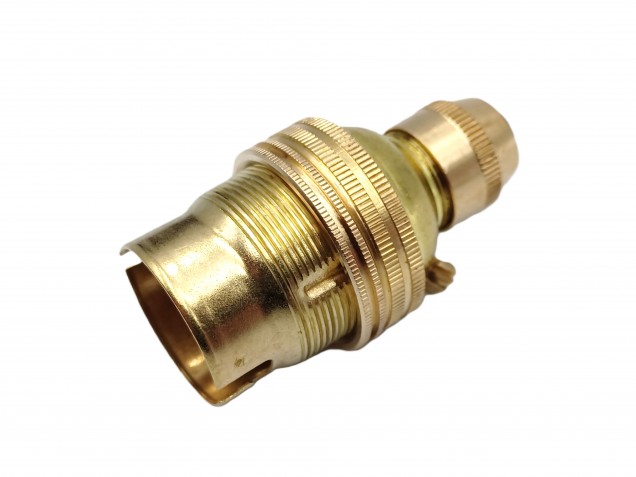

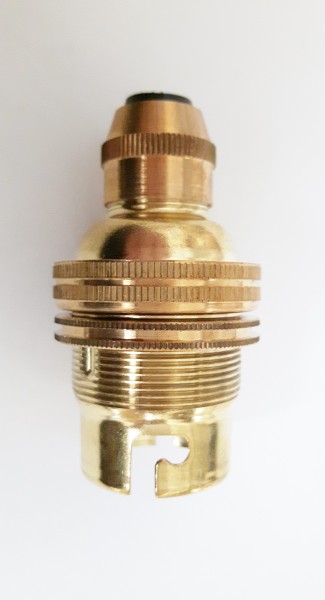

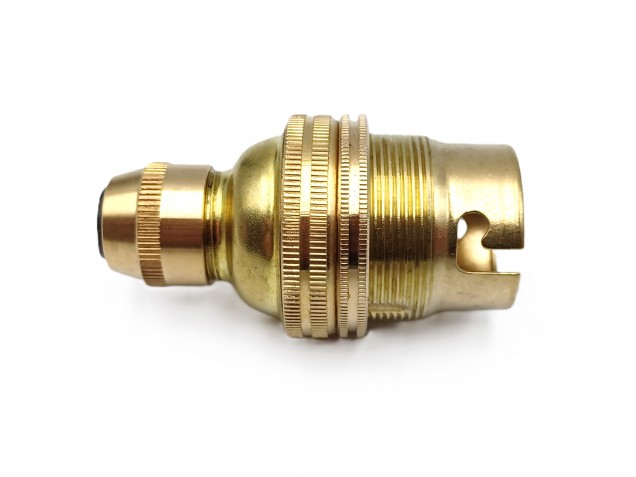

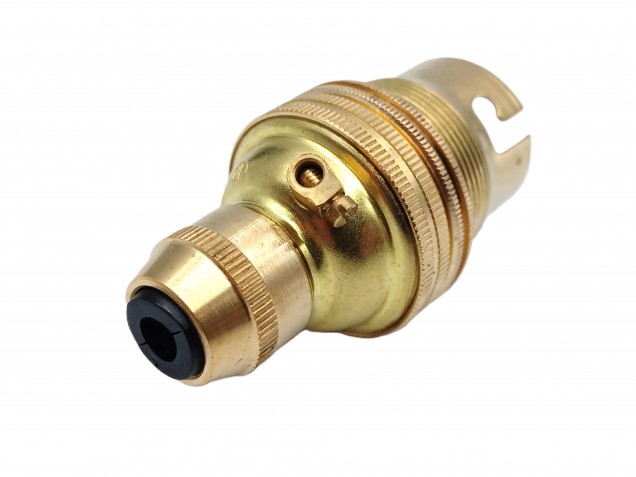

brass bayonet cap bulb / lampholder with cord grip B22
•for use with 3 core electric cable only - 3 core cable comprises live, neutral and earth conductors - coloured brown for live, blue for neutral and yellow/green for earth
•shade rings
•intergral cordgrip for pendant light
•screw-in terminals
•maximum height 58mm
•maximum width 32mm
•250v 2 amp
•pillar terminals
•ceramic insert
•ideal for traditional lighting
•manufactured in the united kingdom
•ideal for lighting restoration and repair

Suggestions of associated products are found below but our selections are not limited to these few examples

FAQS - These are some of the frequent questions we are asked about our ranges of lamp holders

Q) Which bulb should I use for my lamp holder
A)  This listing is for a B22 lamp holder and so you will need a large Bayonet Cap bulb - BC B22

Q) I have purchased a 10mm threaded lamp holder but it will not fit the 10mm thread on my light fitting
A)  All our lamp holders are a metric thread so if  this does not fit you may have an Imperial thread.

Q) My lamp holder starts to come loose when I remove my light bulb,  how can I stop this from happening?
A) If your lamp holder has a locking nut (we will include this information in the item description) tighten the locking nut and this will resolve this issue.  If your lamp holder does not have a locking nut screw a nut on to the threaded rod and then screw your lamp holder down tight to the nut, when you next need to remove your light bulb the lamp holder will remain firmly in place

Q) I have locked my Edison Screw lamp holder  how do I unlock it?
A)  We have produced a video showing how to  release your lamp holder https://www.youtube.com/watch?v=Nwf4xBuR4Zw

Q) Which terminal is the live terminal and which is the neutral?
A) As long as the earth cable is wired in correctly to the earthing point which will be indicated by an earth symbol it does not matter which terminal is used for the live and neutral

Manufactured to comply to:-


BS EN 61184: 2008 / IEC 61184 2008
