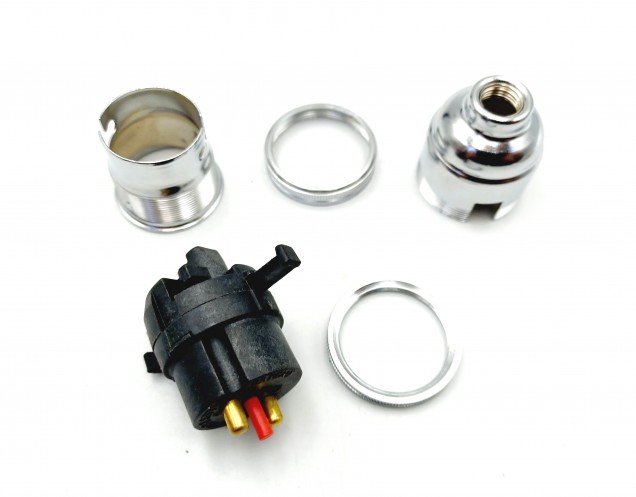

Switched lamp holder BC B22 chrome plated finish, with 2 shade rings
Maximum diameter 32mm including shade rings
Height 61mm
Safety switch push-bar
240v
100 watts max load
10mm x 1mm fine pitch female threaded entry with internal locking screw
For all types of B22 (22mm) Bayonet Cap Bulb

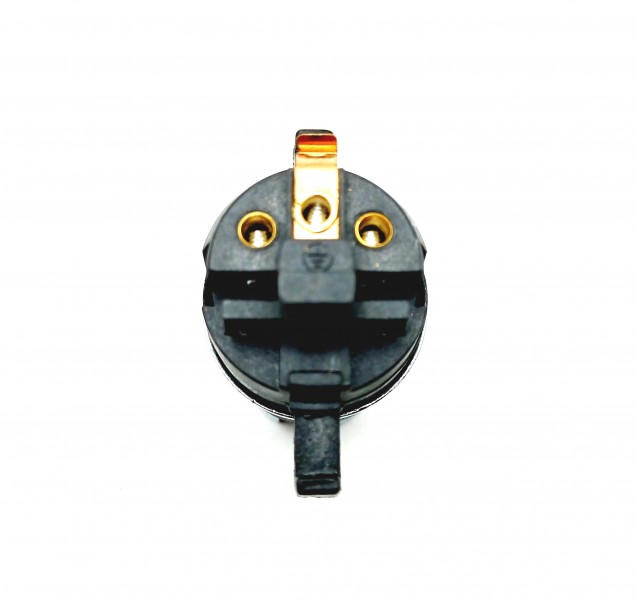

Internal Earth terminal - Metal fittings must be earthed - Suitable for use with our 3 core electrical cable
Shade Ring x 2 - shade ring dimensions 32mm external diameter, 25mm internal diameter 4mm thickness
Brass plunger contacts Safety switched interior (with red pin)
Made in the UK Certified to BS EN 61184:2017
Switch will ONLY work if a bulb is fitted
NB. When re-assembling after wiring, please ensure Earth Strap on the switch insert sits outside of the lamp body as originally supplied - do not squeeze inside the body.
Please Note This product is suitable for lighting circuits only. T2 temperature rating (220°C).
Safety Precautions: Before installing, switch off electricity at mains and ensure that all persons present are aware that you are working with the electrical supply. If you are not working with electrics please consult an electrician.
Please do not hesitate to contact us if you have any product queries.
Our switched lamp holders have a safety feature to help protect the vulnerable turning the lamp holder on when a light bulb is not present, please see our parent companies video showing this feature in use
