• Clear 3 Core PVC  Electrical Cable 0.75mm Pack of SHORT LENGTHS
Hover to zoom - click to enlargeClear 3 Core PVC  Electrical Cable 0.75mm Pack of SHORT LENGTHS
Clear 3 Core PVC  Electrical Cable 0.75mm Pack of SHORT LENGTHS
«See full Clear Electrical Cable 2 And 3 Core range

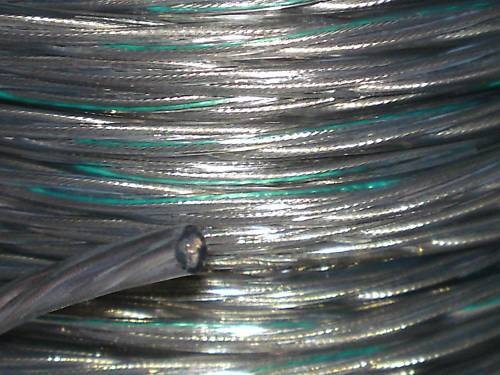

Clear 3 Core PVC Electrical Cable 0.75mm Pack of SHORT LENGTHS


PVC clear electrical cable, 3 core, inner core 0.75mm SHORT Lengths Pack suitable for pendant lights etc. These packs contain 3 core 0.75mm clear electrical cable contain individual pieces of cable [Read more ...]
PVC clear electrical cable, 3 core, inner core 0.75mm SHORT Lengths Pack suitable for pendant lights etc. These packs contain 3 core 0.75mm clear electrical cable contain individual pieces of cable [Read more ...]

Product code: CABC4-KSC17



Price: £5.75


CLICK ARROW FOR QUANTITY OPTIONS:(Click to view size options)



PVC clear electrical cable, 3 core, inner core 0.75mm SHORT Lengths Pack suitable for pendant lights etc.  These packs contain  3 core 0.75mm clear electrical cable contain individual pieces of cable at various lengths.

Click the drop down arrow for details on number of lengths per pack, the longest and shortest length will be detailed, the other pieces will be varying lengths inbetween.  This cable is new and unused.  If you require longer lengths we sell this by the metre (multiples come in continuous lengths). For further details click here

Please note that with shorter length packs availability it limited to the quantity shown.

0.75mm refers to the inner core not the overall dimension.  Our 0.75mm cable rate 6 amp  0.50mm cable rate 3 amp unless otherwise stated
.

For technical data please see "Technical data tab"  should you have any queries please contact us prior to purchase or consult your electrician.
When choosing your electrical cable there are elements that must be taken into account; whether your lighting project requires 2 core or 3 core cable, the inner core required - 0.75mm or 0.50mm, wattage and ampage needed and the style of cable required.

Whilst we are a lighting company you may find our electrical cables appropriate for other projects, dependant on the cable chosen*.
  • 2 core cable does not have an earth and comprises of the live and neutral conductors, coloured blue and brown
  • 3 core cable comprises live, neutral and earth conductors - coloured brown for live, blue for neutral and yellow/green for earth
  • 3 core clear cable - although this is a clear cable the earth is coloured - this is to meet legislation
  • 0.50mm cable is 3 amp rate - up to 720 watts - individual length should not exceed 2 metres*
  • 0.75mm cable is 6 amp rate - up to  1440 watts*
  • Our 0.96mm mini clear cable is 6 amp rating - this cable is double insulated with a thin but extremely tough outer insulator - please note that this cable is not as flexible as some of our other cables
  • braided and twisted, round and oval overbraid cables are designed to replicate period cables and to enhance modern and contempory projects

* For further information please visit http://www.rospa.com/home-safety/uk/northern-ireland/electricity/flexes-cables/flexes/
Manufacturer's technical data:- Clear electrical cable

Operating temperatures:
Oval +80oC, round +105o C
Operating voltage:
450/750V
Relevant standard:
CEI 20-51 PQA, CEI 20-35, IEC 60332-1, CEI 20-11 (round only).
Insulation colours:
Transparent cores, solid colour green/yellow in 3 core.
Outer sheath:
Transparent 80o C oval and 105o C round
Performance:
Both oval and round cables have 180o C FEP insulated tinned conductors (not phase marked) both have a resistance of 26.7 OHM/km and insulation resistance of 2700 M.OHM/km available with 80oC or 105oC jacket. This construction is robust and with excellent cut through resistance.

Product Reviews ...

No feedback for this course.

Description

PVC clear electrical cable, 3 core, inner core 0.75mm SHORT Lengths Pack suitable for pendant lights etc.  These packs contain  3 core 0.75mm clear electrical cable contain individual pieces of cable at various lengths.

Click the drop down arrow for details on number of lengths per pack, the longest and shortest length will be detailed, the other pieces will be varying lengths inbetween.  This cable is new and unused.  If you require longer lengths we sell this by the metre (multiples come in continuous lengths). For further details click here

Please note that with shorter length packs availability it limited to the quantity shown.

0.75mm refers to the inner core not the overall dimension.  Our 0.75mm cable rate 6 amp  0.50mm cable rate 3 amp unless otherwise stated
.

For technical data please see "Technical data tab"  should you have any queries please contact us prior to purchase or consult your electrician.

Choosing Electrical Cable

When choosing your electrical cable there are elements that must be taken into account; whether your lighting project requires 2 core or 3 core cable, the inner core required - 0.75mm or 0.50mm, wattage and ampage needed and the style of cable required.

Whilst we are a lighting company you may find our electrical cables appropriate for other projects, dependant on the cable chosen*.
  • 2 core cable does not have an earth and comprises of the live and neutral conductors, coloured blue and brown
  • 3 core cable comprises live, neutral and earth conductors - coloured brown for live, blue for neutral and yellow/green for earth
  • 3 core clear cable - although this is a clear cable the earth is coloured - this is to meet legislation
  • 0.50mm cable is 3 amp rate - up to 720 watts - individual length should not exceed 2 metres*
  • 0.75mm cable is 6 amp rate - up to  1440 watts*
  • Our 0.96mm mini clear cable is 6 amp rating - this cable is double insulated with a thin but extremely tough outer insulator - please note that this cable is not as flexible as some of our other cables
  • braided and twisted, round and oval overbraid cables are designed to replicate period cables and to enhance modern and contempory projects

* For further information please visit http://www.rospa.com/home-safety/uk/northern-ireland/electricity/flexes-cables/flexes/

Technical Data

Manufacturer's technical data:- Clear electrical cable

Operating temperatures:
Oval +80oC, round +105o C
Operating voltage:
450/750V
Relevant standard:
CEI 20-51 PQA, CEI 20-35, IEC 60332-1, CEI 20-11 (round only).
Insulation colours:
Transparent cores, solid colour green/yellow in 3 core.
Outer sheath:
Transparent 80o C oval and 105o C round
Performance:
Both oval and round cables have 180o C FEP insulated tinned conductors (not phase marked) both have a resistance of 26.7 OHM/km and insulation resistance of 2700 M.OHM/km available with 80oC or 105oC jacket. This construction is robust and with excellent cut through resistance.

Product Reviews

Product Reviews ...

No feedback for this course.
